We offer replacement and new installs

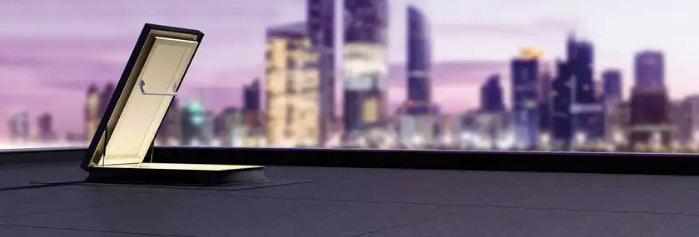

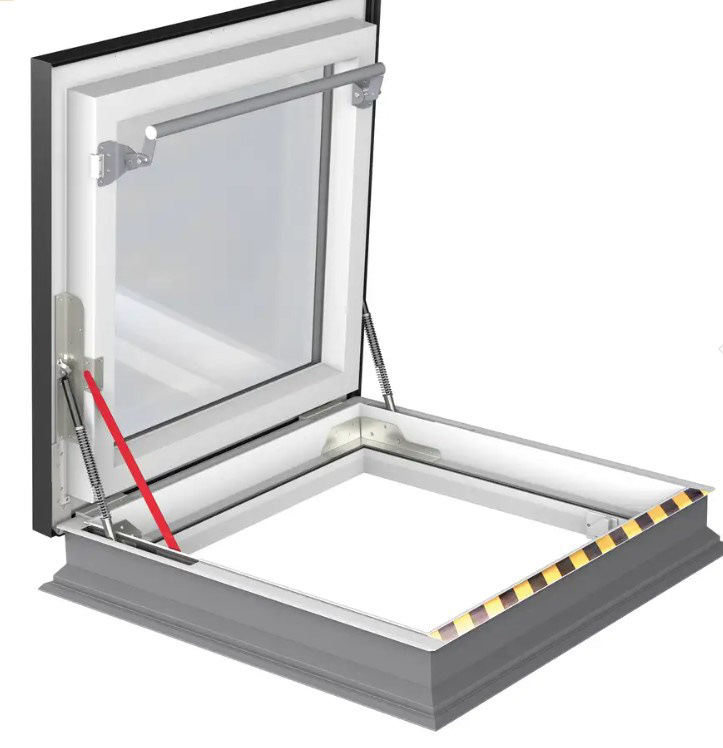

Flat Roof Access Skylight By Fakro

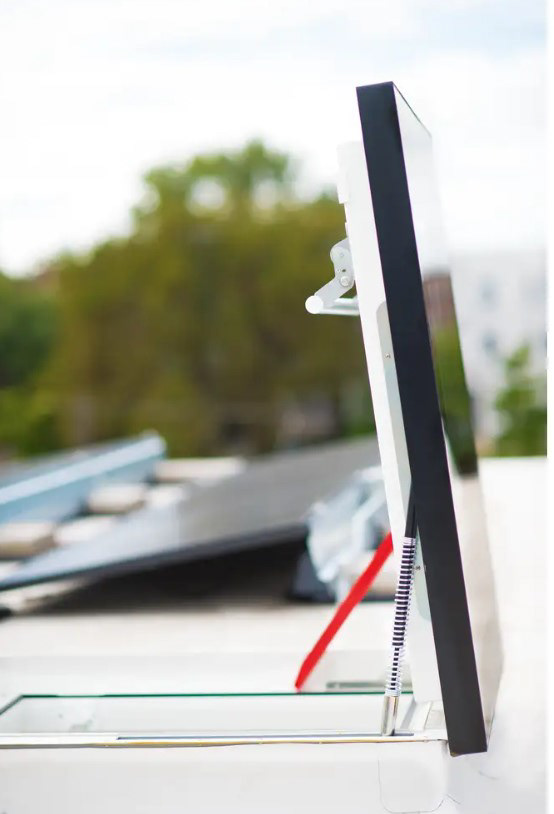

This insulated roof access skylight DRF has an extra utility feature which provides safe and convenient access to the roof. The uniquely designed hinges and opening system allow the sash to easily open up to 80°. Gas springs operate the sash and keep it stable while open to prevent accidental closure.​​​​​​​
Product Details

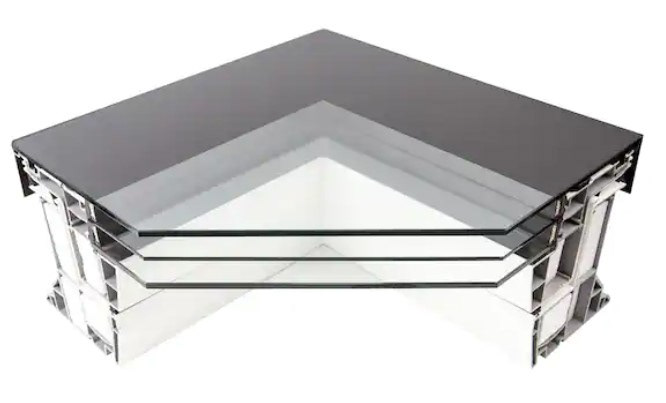

1. Equipped with innovative DU6 highly energy-efficient glazing unit, internal glass anti-burglary in P2A class.
2. The use of special hinges and a functional operation method enable the sash to be opened up to 80°.

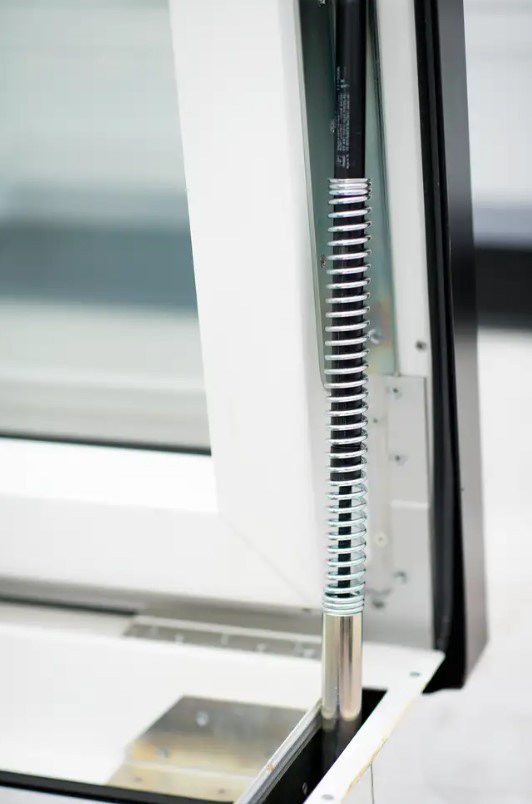

3. Gas springs facilitate opening and closing and the sash can be left in open position to protect against accidental closure.
4. Increased operational safety through use of an anti-slip tape on the access roof light lower frame element.
5. ZBL/D lock available as option to protect the roof against unauthorized entrance.
6. Equipped with the ZBR lock as standard to protect against accidental closure of the sash.
7. Suitable for pitches from 2° - 15°.
8. If the roof pitch is less than 2° or if it is advisable to increase the installation angle, the XRD/A angular installation base should be used, which fitted directly beneath the window lifts installation angle by 3 degrees.
9. Access roof lights can be mounted on an additional XRD or XRD/W base with a height of 6 in. to ensure installation in green or gravel roofs.
10. The structure of the access roof light enables installation of manual internal accessories as well as external solar type accessories.
11. Toughened external glass with lifetime hail resistance warranty.
12. Two-year warranty for gas springs, 10-year warranty for access roof lights.
Standard Sizes Available and Costs:
30" x 30" - $2,631 + Tax
30" x 36" - $2,770 + Tax
36" x 36" - $3,048 + Tax
36" x 38" - $3,465 + Tax
48" x 48" - $4,020 + Tax
Cost for the roof access hatch only. Excludes cost for installation.

Installation Costs
Installation costs will vary according to the model, number of skylights, roof pitch, access to roof and your ceiling type. Listed below are price ranges for installation of a new roof access hatch or replacement of an existing one.

Replacement Cost - $2,500 - $5,000
New Install - $4,500 - $5,900 includes building a light shaft.
Cost for labor only. Excludes cost for the roof access hatch.
Warranty
Manufacturer's Warranty - 10 year warranty, and 2 year warranty for gas springs years on glass
Workmanship Warranty - 5-year by contractor
Flat Roof Access Insulated Door By Fakro

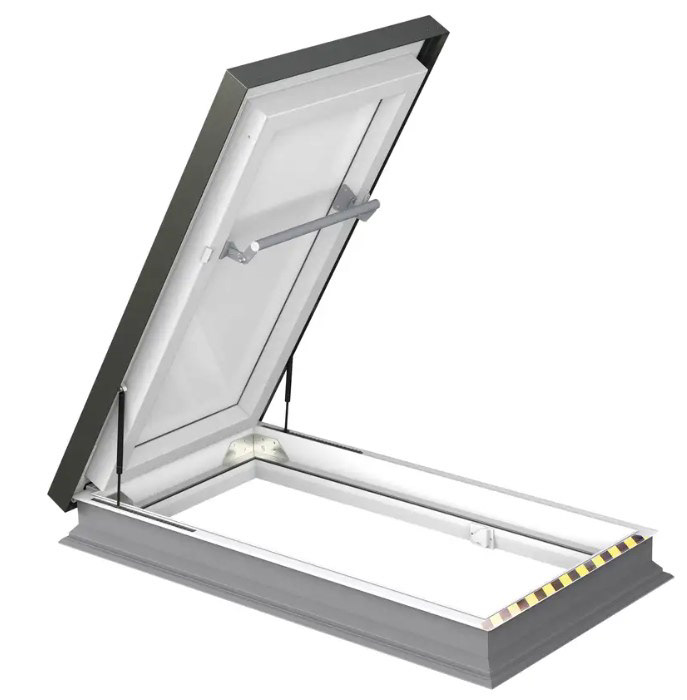

The Flat Roof Metal Hatch DRL is an insulated metal hatch for accessing a flat roof. It can be combined with the LML wide-step metal attic ladder or any FAKRO attic ladder for ease of access. The piston-assisted hatch stays open at an 80-degree angle, while anti-slip covers on the frame ensure safe footing.
Product Details
1. Includes insulated multi-chamber PVC curb and gas springs
2. Anti-slip tape on the base ensures safe access to the flat roof
3. The sash can be opened up to 80°
4. Intended for roofs with pitches between 0° and 5°
5. Can be mounted on an additional XRD base with a height of 5.9", for installation in green and living roofs
6. Option to install an additional ZBR lock which protects against accidental closure of the sash
7. Recommended in combination with the LML attic ladder of the same size
8. 10-year warranty
Standard Sizes Available and Costs:
30" x 30" - $2,326 + Tax
30" x 36" - $2,354 + Tax
36" x 36" - $2,493 + Tax
70" x 130" - $2,631 + Tax
Cost for the roof access hatch only. Excludes cost for installation.
Installation Costs
Installation costs will vary according to the model, number of skylights, roof pitch, access to roof and your ceiling type. Listed below are price ranges for installation of a new roof access hatch or replacement of an existing one.

Replacement Cost - $2,500 - $5,000
New Install - $4,500 - $5,900 includes building a light shaft.
Cost for labor only. Excludes cost for the roof access hatch.
Warranty
Manufacturer's Warranty - 10 year warranty
Workmanship Warranty - 5-year by contractor
